Disabling hybrid objects for selection

Disabling hybrid objects for selection

Selection of raster objects in WiseImage can yield two types of result: hybrid or pure raster. The type of selection can be switched by the button on the Select toolbar. When this button is not pressed, the raster objects selected are supplied with grips and can be treated as vector objects.

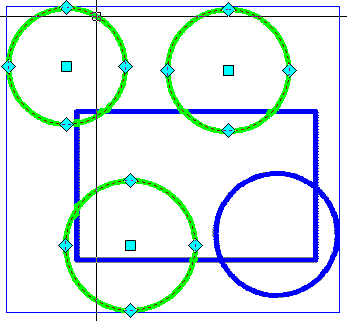

Buttons , , are pressed and is not pressed. Three circles are clicked with the mouse. Raster objects are selected as hybrid.

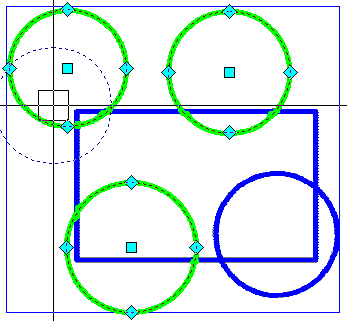

Use grips to resize or move them separately. When dragging any circle, the whole group of circles is moved.

When the Disable hybrid objects for selection button is pressed, the raster objects selected are pure rasters and more complicated operations can be used to change the selection set.

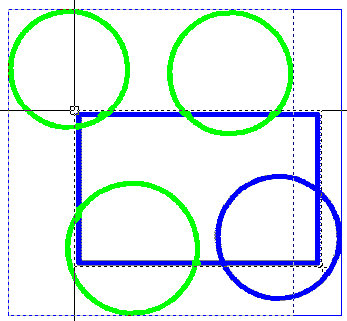

Buttons , , are pressed and also button on Select toolbar is pressed. Three circles are added to selection set that is raster area. Pixels selected are highlighted with colour and the selection set is encompassed with a dashed rectangle.

Reconfigure the selected area by cutting it with other areas i.e. selecting the fragment in the centre with button pressed (note that all pixels inside the dashed area drawn around rectangle are subtracted from the selection).

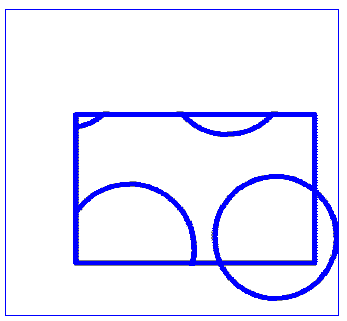

Pressing DEL removes the parts of three circles outside the rectangle.

When composing a selection set, you the mode of hybrid objects can be changed in add to selection raster and vector objects in any combination.
