Aligning

Aligning

Selected WiseImage objects can be aligned to other objects.

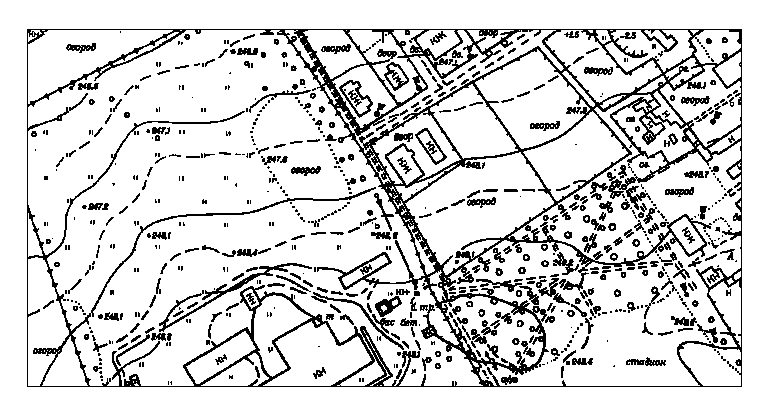

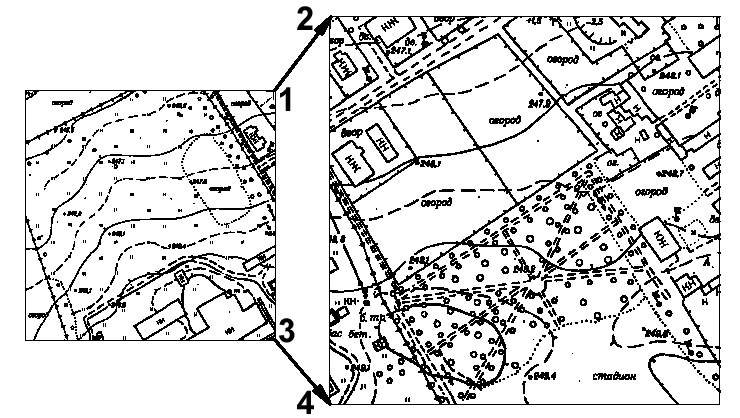

This figure presents two fragments of different scales, which can be joined using Align. The result of the operation is shown on the next figure.

To align WiseImage objects:

1. Select a WiseImage object to be aligned.
2. Choose Align from the Modify menu or press the button on the Modify toolbar.
3. Specify the first point (point 1) on the aligned object; this point must be pulled to the corresponding point of the object (point 2) – the first object is to be aligned to the second one.
Specify point 2.
Specify the second point (point 3) on the aligned object; this point must be pulled to the corresponding point of the object (point 4) – the first object is to be aligned to the second one.
Specify point 4.
