Active Script Studio.

Active Script Studio

The built-in code editor can be used for creating custom script commands. There is also a visual HTML-form editor designed for integration of user’s forms and commands in the code.
 For information about creating custom user buttons and assigning scripts see The Commands tab.

To create a custom user command

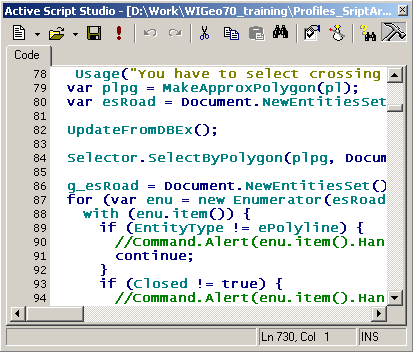

Choose Tools > Active Script Studio. This command invokes a dialog where command files can be created, edited, saved and run.

The buttons in the Active Script Studio dialog execute the following functions:

Button	Function
	Clear the pane to create new Java Script, VBScript or HTML-form
	Open a script file
	Save a current script file (with the SHIFT key pressed – save with a different name)
	Run a script
	Undo / Redo
	Cut / Copy / Paste
	Search for text
	Setting parameters to create Java Script, VBScript or HTML-from
	Creates a master of the dialog
	Reference for WiseImage Open Architecture
	Drag this icon onto any toolbar or menu to create custom user command invocation button. For additional information about creating custom command buttons see The Commands tab.

In the editing mode of the HTML-form the Master ActiveX has three tabs.
 The Code tab contains the initial text of HTML-form.

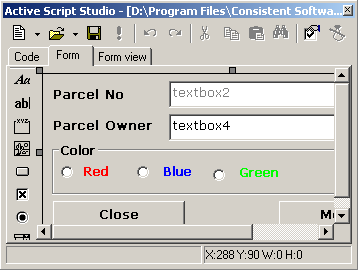

 The Form tab – visual form editor.

The tools for form creation and editing:

	Insert Label
	Insert Text box
	Insert Frame
	Insert Image
	Insert Button
	Insert Checkbox
	Insert radio button
	Insert Dropdown list
	Insert List
	Insert Text area
	Insert File browse
	Insert ActiveX element
	Align Left
	Align Right
	Align Top
	Align Bottom
	Make Same Width
	Make Same Height
	Make Same Size

 The Form view tab – preview of HTML-form

User command (script) Arguments

User custom commands (scripts) can use additional individual parameters (arguments) for different launch sessions. (Such scripts must implement the ScriptSetup function). The script must define a type and a number of arguments. For example, assign different arguments to the buttons that run the same script.
This feature means the same for a script as the Preferences dialog for WiseImage. It is used to specify those script custom settings that will be rarely changed.
To assign arguments values – create a toolbar button for the script and right-click on it. Click the Arguments button in the Tool Setup dialog that appears and then assign arguments values for this button (launch session).
