Extending vectors

Extending vectors

Vector objects can be extended so that they end precisely at the boundary defined by other objects. One or several selected objects can be used, and also Edge as a boundary.

To Extend vectors by boundary

In the following example, first select a line that will be a boundary, and then specify the objects to be extended to the boundary.

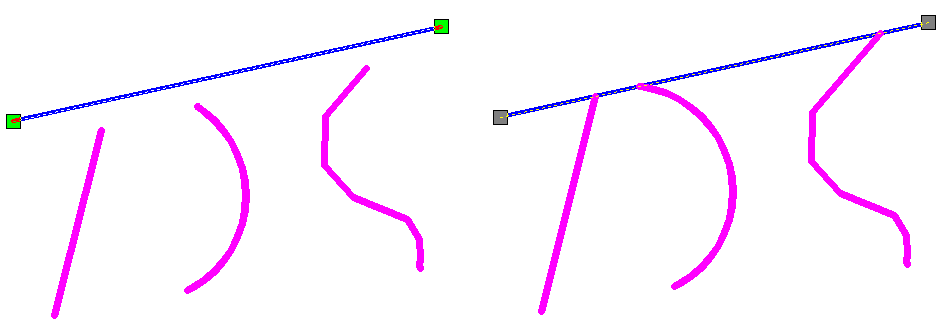

Selected extend boundary Result

1. Select the vector object or objects to specify a boundary.
2. Choose Extend Vectors By Edge from the Correct menu or press the button on the Vector Correction toolbar.
3. Select vector objects to be extended one by one.

To Extend vectors by Edge

In the following example first specify an Edge, and then select the objects to be extended to this Edge.

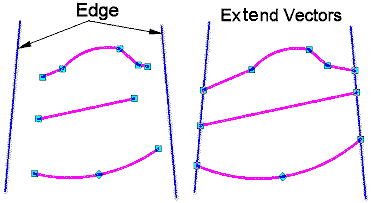

Before applying Extend by Edge Result
1. Set the Edge.
 For more information on setting of the Edge see Correcting by Edge.
2. Select the vectors to expand.
Note: this command can only be applied to non-closed vector objects.
3. Choose Expand vectors By Edge from the Correct menu or press the button on the Vector Correction toolbar.
