Speckle Remover

Speckle Remover

The Speckle Remover filter removes raster objects (isolated pixel groups) that are smaller than those of the specified value. This filter can automatically estimate the speckle size in the image.

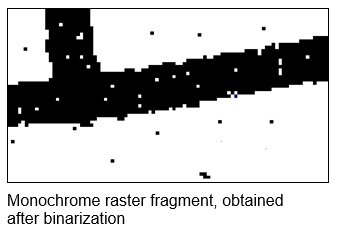

The filter can be used after such procedures as binarization and layering to remove low-sized raster objects in the obtained monochrome images’ layers.

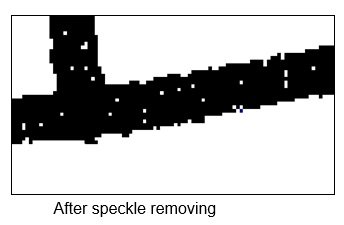

To remove raster speckle

1. Define the selection set to be processed and choose Speckle Remover from Filters menu or press the button on the Filters toolbar.

2. Specify the maximum size of raster objects to be removed in the current units (left box) or in dots (right box).
- or -
Set the Auto Estimating option so that the filter automatically estimates raster speckle size before filtration.
To measure the size of a raster object on the screen, click on pixel inside the object.
or
Click the button and pick two pixels on the screen. The program will estimate the speckle size equal to the distance between these points.

3. Choose Apply.
