Scale

Scale

1. Choose Scale from the Modify menu press the button on the Modify toolbar.

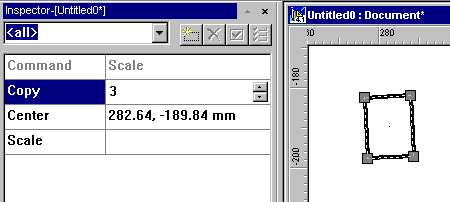

2. If necessary, then specify the number of copies in Copy of the Inspector toolbar. Setting Copy to 0 removes the original object and creates one scaled copy.

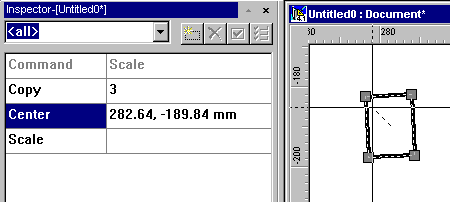

3. Specify a point by which objects are to be scaled: enter its coordinates in Centre of the Inspector toolbar or specify it on the screen using the tool , which is displayed when this box is activated.

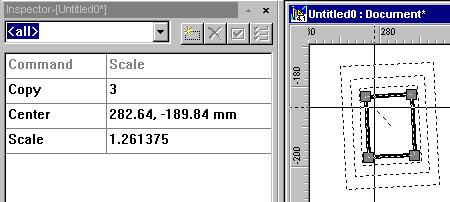

4. Scale field contains a multiplier of dimensions of the selection applied on each scaling step. This can be set by controlling rubber-lines in the screen with the mouse.

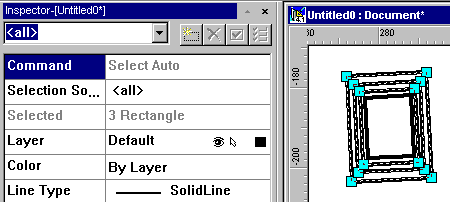

The result.
If the scaling centre coordinates is not specified on step 3, then object(s) are scaled from the geometrical centre of selection.
